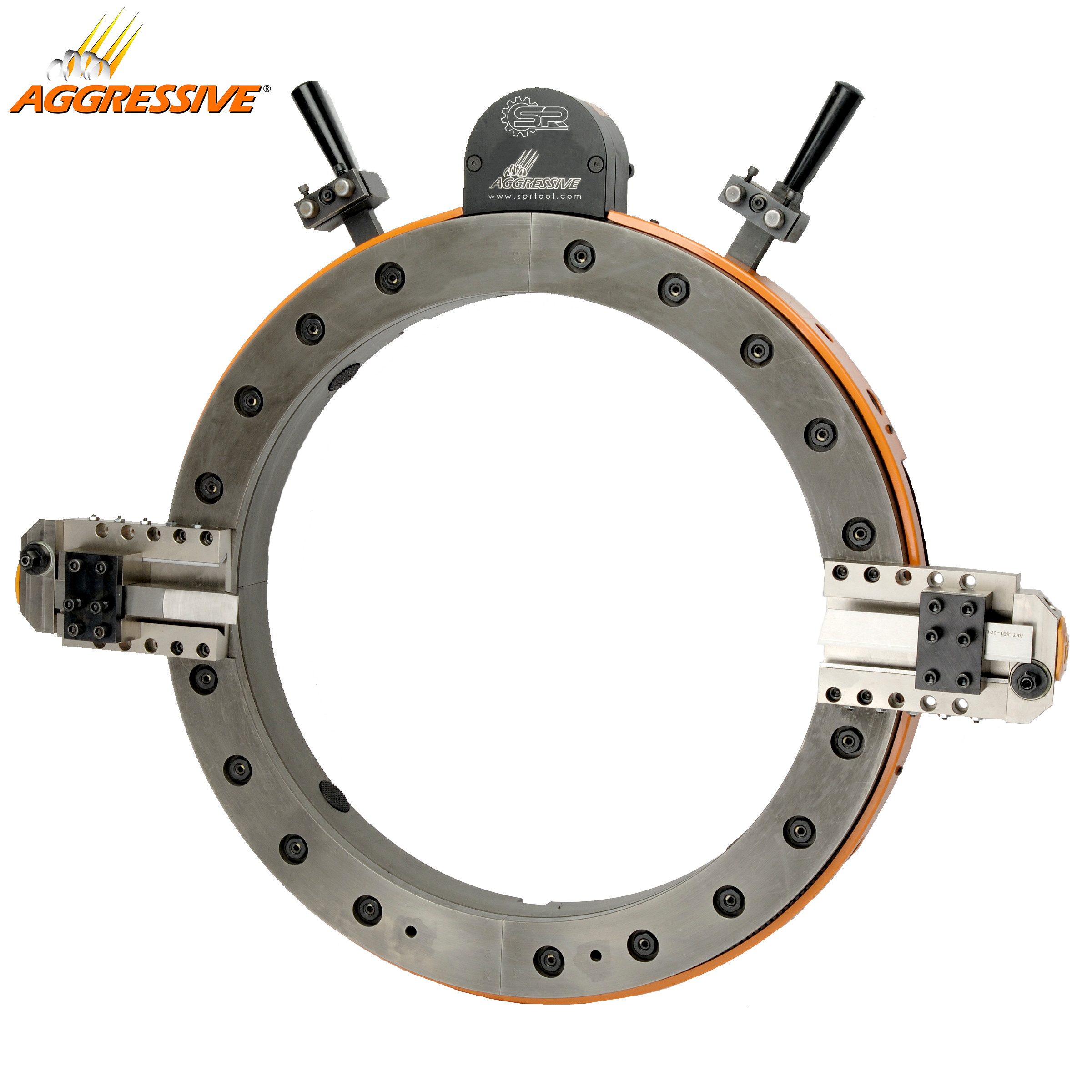

Cold Cutting Machine "Split Frames"
Overview
The aluminum split frames cover ranges from 4” to 30” and the steel split frames cover from 4" to 150." For more information on how you can purchase or rent an Aggressive clamshell split frame
Product Details
The Aggressive Clamshell is SPR's portable cold cutting and split frame solution for in-place pipe work. Spark-free and heat-free, it's the preferred tool for hazardous environments including oil refineries, offshore platforms, and gas pipelines. Rigid and designed for one-man setup in minutes, it handles thin wall and heavy wall pipe, flanges, elbows, and reducers in steel and aluminum from 4" to 150".All Aggressive split frames have the following capabilities:
Sever and Bevel with Form Tooling
Bevel with Signal Point Attachment
Miter
Counter Bore
Deep Bore Turning
Specifications
- Nitride Finish to Prevent Corrosion
- Tool Slides Made of High Strength Alloy Steel With High Phos-Nickel Finish
- 4140 Preheated Steel Frame Design
- Quickly Splits to Mount Around In-Line Pipe O.D.
- Quick Change Leg Design
- One Man Can Easily Set Up in Minutes
- Optional Light Weight Design
- Can Be Mounted on Straight Run Pipe or Elbows
- Motor Options Include Pneumatic, Hydraulic, and Electric
- Available Cutting Attachments:
- Axial Feed
- Bridge Slide
- Counter Bore – Straight
- Counter Bore – Swivel
- Facing Attachment (125 Or 250 Finish)
- Out of Round Slides
